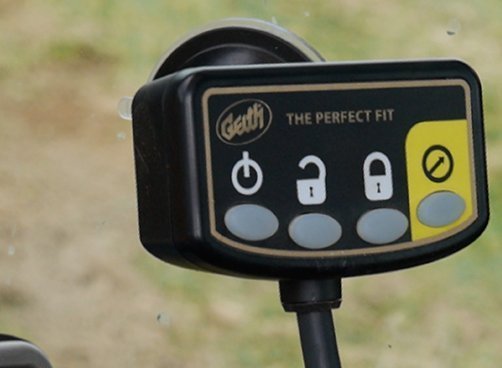

Control Box

Description

Easy installation and improved performance.
• User friendly with increased safety and audio warning.
• Plug & Play Installation with Suction Pad Holder.
• Bypass Button allowing you to remove particular attachments such as pallet forks (as example) without having to curl in the coupler to release the attachment
• IP65 rated (high dust and water resistance rating)
• Maintenance friendly and compatible with previous control box*
• Can be used to power LED warning beacons and Audio devices for additional safety features

Using the Control Box

• Step 1. Press the Power button.
• Step 2. Press the unlock button.
• Step 3(a). Curl to get pressure & Audio signal.
• Step 3(b). Press the bypass button for 6 seconds.
• Step 4. Both Safety Locks will now open.
• Step 5. Press the Lock button to close safety locks.
* Bypass button allows you to remove particular attachments when the curl position is not suitable

*One Step 3 is used from Step 3(a) or 3(b) depending on whether you are using curl to release or using bypass button
