Description
Despite the specific characteristics of each bucket type, all the Geith buckets share some common design features that make them unique. Below are some of the reasons for their superior strength and durability:
- Diamond folded top section for greater structural strength (a)
- Overlapping plate reduces stresses in critical areas (b)
- Dual Radius shape increases heel clearance reducing drag and wear (red line being a non dual radius design where the bottom of the bucket can drag against the ground more on digging) (c)

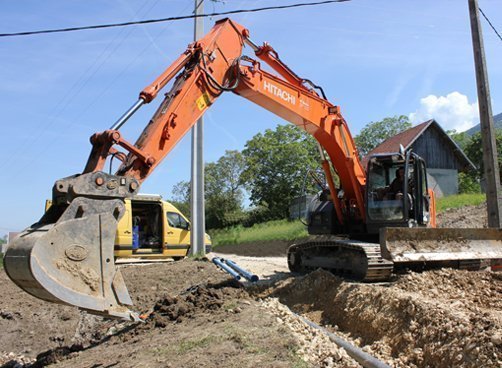

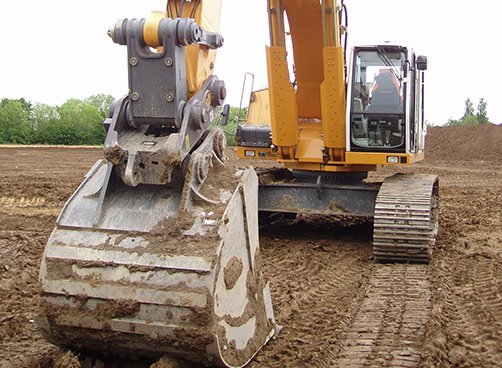

Heavy Duty Digging Bucket
- Diamond folded top section for greater structural strength
- Deep profile for high capacity.
- Grading buckets available with bolt on cutting edge.
- Overlapping plate reduces stresses in critical areas.
- Dual Radius shape increases heel clearance
Rock Duty Digging Bucket
- All bucket components are 400 BHN or higher
- Diamond folded section wear plate provides extra strength and wear protection
- Bottom wear straps using 400BHN to increase wear resistance
- Extra high side plate give higher strength and wear resistance in high wear areas
- 4 reinforcing gussets are used to strengthen up machine fittings

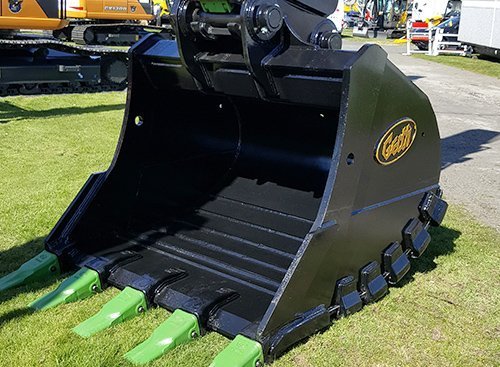

Extreme Duty Digging Bucket
- 3 Levels of wear protection for more extreme applications including internal wear straps, additional wear blocks (700 BHN) and side and blade shrouds.
- All bucket components are 400 BHN or higher
- Diamond folded section wear plate provides extra strength and wear protection
- Bottom wear straps using 400BHN to increase wear resistance
- Extra high side plate give higher strength and wear resistance in high wear areas
- 4 reinforcing gussets are used to strengthen up machine fittings
Heavy Duty Grading Bucket
- Reduced weight with high quality, abrasion resistant material
- Extra side and bottom wear plates, using AR400 heat treated special alloy steel as standard.
- Two web plates provide additional strength and distribute stresses evenly throughout the bucket
- Deep profile ideal for levelling and loading applications.
- Cast side cutter in BS9 models
- Optional reversable bolt on edge.
